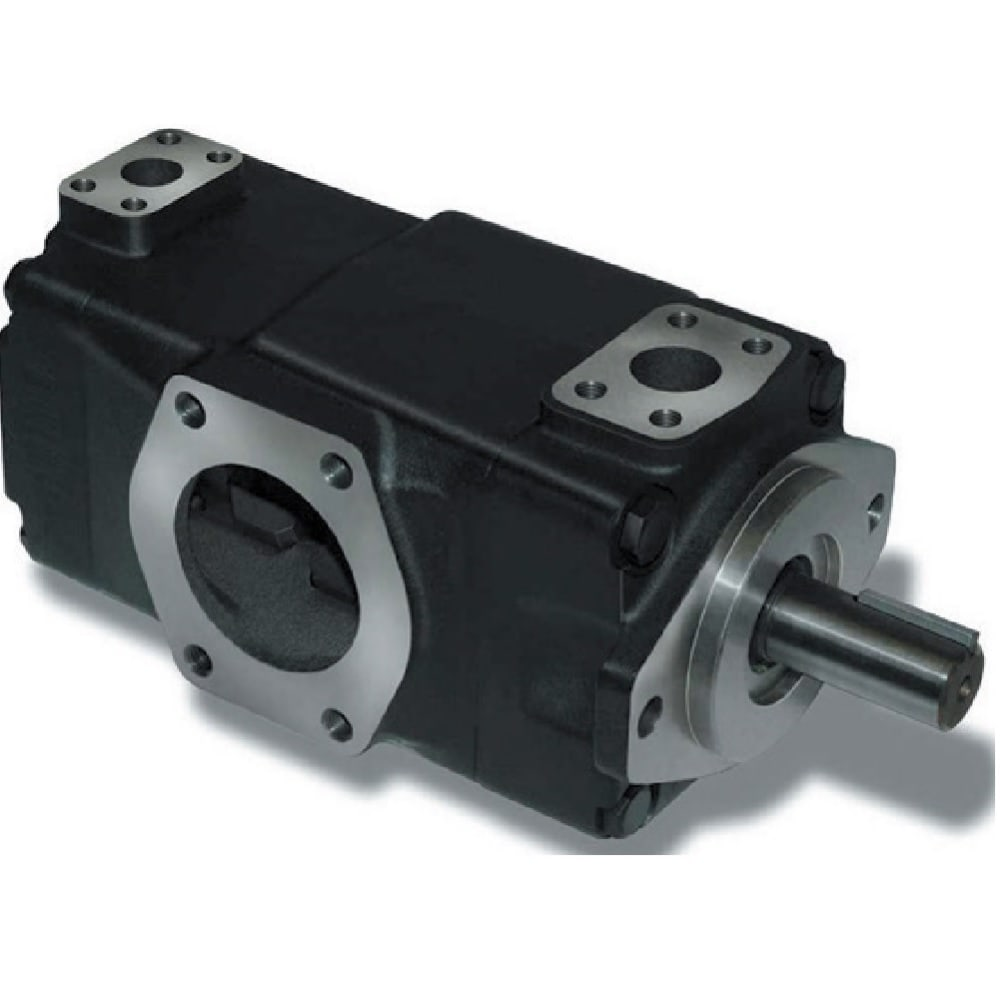

Parker T6ED 062 038 1R01 B100 Double Vane Pump, 12.00 & 7.34 in³/rev, Right-Hand Rotation, Standard Ports

The Parker Denison T6ED 062 038 1R01 B100 Double Vane Pump is a robust and high-performance hydraulic pump designed for demanding mobile applications. As part of Parker's renowned T6 series, this double vane pump delivers superior efficiency, reliability, and extended service life in a compact envelope. This model features precise engineering to meet or exceed industry standards, ensuring optimal operation even in challenging environments.

Key Features:

• Greater Flow: Achieves higher flow rates for its size due to increased displacement cam rings, enabling efficient operation at high permissible speeds with atmospheric inlet.
  • P1 (Rear Cartridge - T6E 062): Provides 12.00 in³/rev (approx. 62.36 GPM at 1200 RPM/0 PSI).
  • P2 (Front Cartridge - T6D B38): Provides 7.34 in³/rev (approx. 38.14 GPM at 1200 RPM/0 PSI).
• Higher Pressure Rating: Capable of pressure ratings up to 4000 PSI, which helps reduce the size and cost of actuators, valves, and lines, while extending overall system life at lower operating pressures.
• Exceptional Efficiency: Improved volumetric (typically 94%) and mechanical (typically 94%) efficiency under load, leading to increased productivity, reduced heat generation, and lower operating costs. This allows for speeds as low as 400 RPM at full pressure without compromising performance.
• Mounting Flexibility: Features up to 32 positions for double pumps and up to 128 for triple pumps, which simplifies installation and enhances performance. Conforms to SAE J744c 2-bolt and ISO 3019-1 standards.
• Lower Noise Levels: Engineered for quiet operation, contributing to increased operator safety and acceptance. The low ripple pressure (± 29 PSI) further reduces piping noise and extends the lifespan of other components in the hydraulic circuit.
• Cartridge Design: Incorporates a replaceable cartridge design, allowing for quick and easy conversion or renewal of serviceable elements in minutes. This minimizes expense and reduces the risk of contamination. Both C and D cartridge pumps are bi-rotational, with rotation easily changed by adjusting the cam ring position.
• Wide Viscosity Range: Accommodates viscosities from 9240 to 60 SUS, enabling reliable performance in colder starts and hotter running conditions. The balanced design compensates for wear and temperature changes, ensuring excellent lubrication and mechanical efficiency even at high viscosity or cold temperatures.
• Fire-Resistant Fluid Compatibility: Designed to effectively pump phosphate esters, chlorinated hydrocarbons, water glycols, and invert emulsions at higher pressures and with longer service life.

Technical Specifications:

• Model: T6ED 062 038 1R01 B100
• Pump Type: Double Vane Pump
• Rotation: Right-Hand (Clockwise, viewed from shaft end)
• P1 (Rear Cartridge) Displacement: 12.00 in³/rev
• P2 (Front Cartridge) Displacement: 7.34 in³/rev
• Seal Class (P1): S1 (for mineral oil)
• Seal Class (P2): B (standard seal)
• Porting Combination: 01 (Standard P1 and P2)
• Maximum Operating Pressure: Up to 4000 PSI (depending on fluid type)
• Speed Range: 400 RPM to 2800 RPM (depending on configuration and fluid)
• Fluids Compatibility: Petroleum-based anti-wear R&O fluids (HF-0, HF-2 recommended), phosphate esters, chlorinated hydrocarbons, water glycols, invert emulsions.
• Fluid Cleanliness: Recommended to maintain contamination level of NAS 1638 Class 8 (or ISO 18/14) or better.
• Weight: Approximately 145.5 lbs
