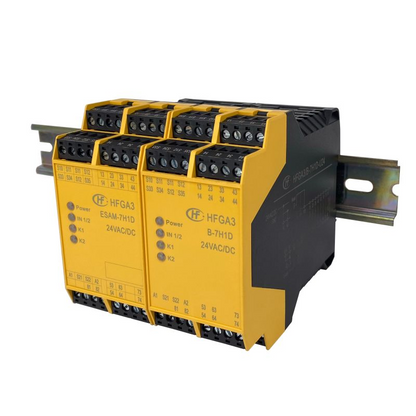

HONGFA HFGA1/A-4H-U24 Safety Relay Module

• Brand: HONGFA
• Application: Monitoring of Emergency Stop Devices (E-Stop), Safety Gates, Light Curtains/Grids
• Safety Function: Suitable for applications requiring one safety relay per function.
• Input Configuration: Supports Single-Channel or Dual-Channel wiring. (Option for short-circuit cross-monitoring between channels available in the series).
• Rated Input Voltage: 24V AC/DC
• Reset Function: Configurable for Manual Start or Automatic Start.
• Safety Outputs: 4 x Normally Open (N/O) contacts.
• Indicators: LED lights indicate internal relay operating status and power supply status.
• Terminals: Available with Pluggable Screw Terminals or Pluggable Spring-Cage Terminals (specify option when ordering).
• Mounting: DIN Rail (35mm)

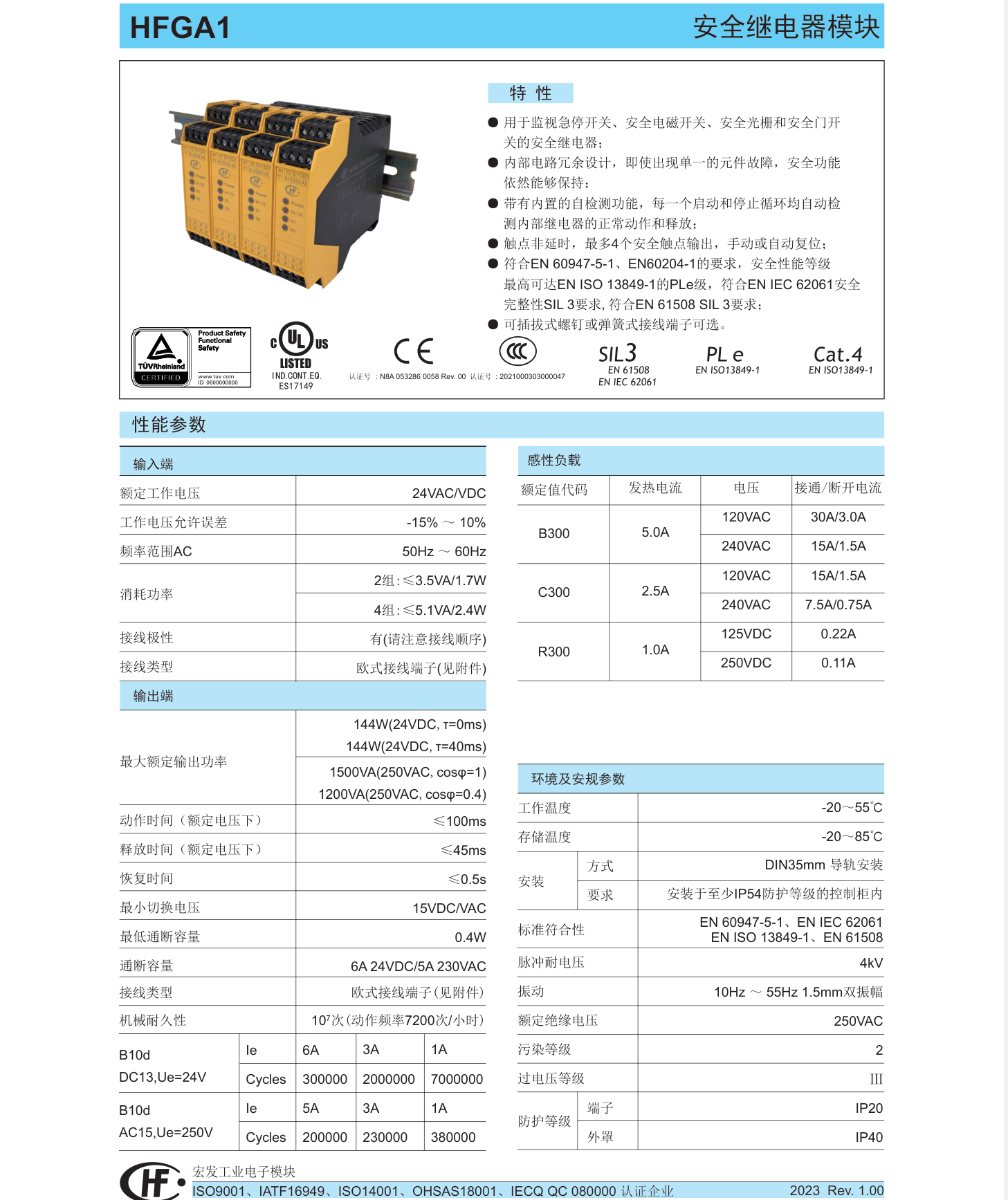

Technical Data:

• Product Code: HFGA1/A-4H-U24
• Voltage Rating: 24V AC/DC
• Inputs: 1 or 2 Channels
• Outputs: 4 N/O
• Operating Temperature: -20 °C to +55 °C (based on series information)
