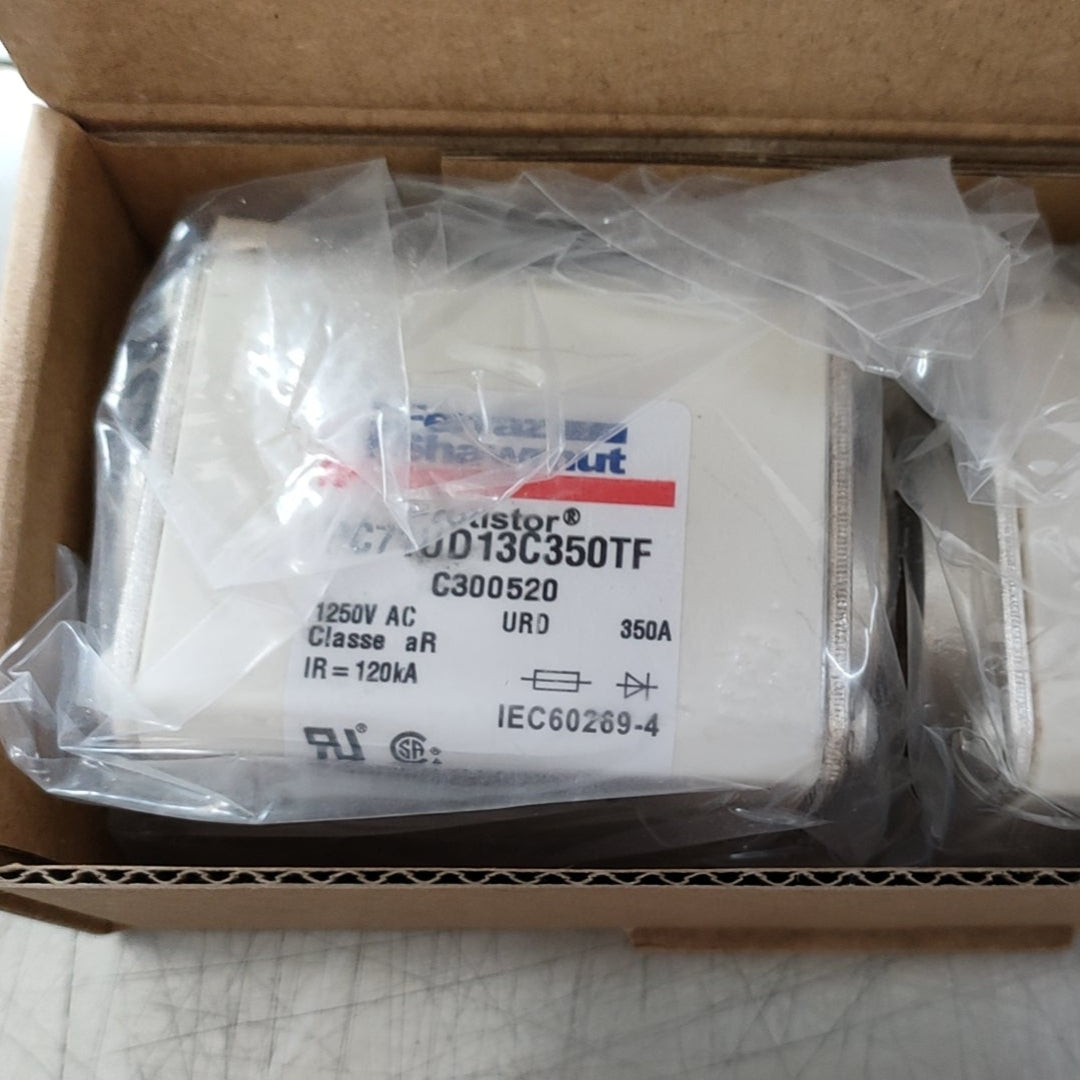

Ferraz Shawmut C300520 - PC71UD13C350TF Fuses (2 Pieces)

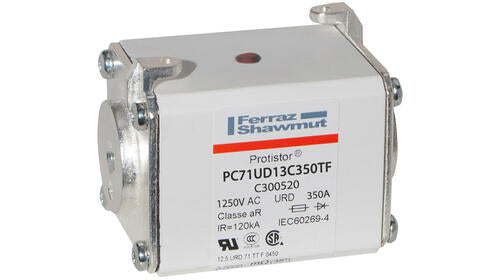

Mersen Protistor® PC71UD13C350TF Fuse

Manufacturer: Mersen Product Type: Semiconductor Protection Fuse (Ultra-Fast) Model: PC71UD13C350TF (C300520)

Electrical Characteristics:

• Current Rating (In): 350 A
• Voltage Rating:
  • 1300 V AC (UL)
  • 1250 V AC (IEC 60269-4)
• Fuse Characteristic: aR (Ultra-Fast Acting)
• Interrupting Rating (Breaking Capacity): 100 kA
• Rated Power Dissipation (P_max): 120 W (at 350 A)
• Rated I²t (Melting I²t): 17000 A²s (at 1300 V)

Physical Characteristics:

• Body Material: Ceramic
• Dimensions (Size 71):
  • Length: 120 mm
  • Diameter: 60 mm
  • Terminal Width: 71 mm
  • Terminal Thickness: 13 mm
• Mounting: Flush end contacts with fixing holes

Certifications & Standards:

• UL Recognized (UL 248-13)
• IEC 60269-4
