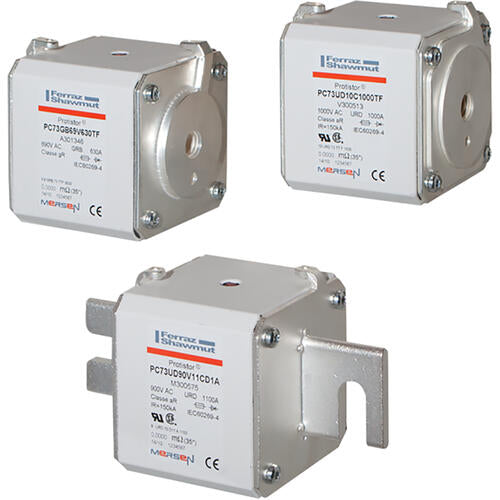

Mersen A130UD73TTI900 J301055 900A Fuses (3 Pieces)

Mersen Protistor® Semiconductor Fuse A130UD73TTI900

The Mersen A130UD73TTI900 is an ultra-rapid (aR Class) Protistor® fuse designed to protect power semiconductors, including diodes, thyristors, and IGBTs. This square body fuse features very low I²t (Joule integral) and a high interrupting rating, making it suitable for protecting sensitive components in applications such as variable speed drives, rectifiers, inverters, DC drives, and UPS systems. It includes a visual Type T trip indicator for easy fuse status monitoring.

Key Features & Specifications:

• Brand: Mersen
• Product Type: Semiconductor Protection Fuse
• Series: Protistor® Square Body Fuses
• Part Number: A130UD73TTI900 (Reference: T1013903)
• Application: Protection of power semiconductors and equipment (Diodes, Thyristors, GTOs, IGBTs, Drives, Rectifiers, UPS, etc.)
• Fuse Class: aR (Ultra-Rapid)
• Indicator: Visual Trip Indicator (Type T)
• Mounting: Bolted connections

Technical Data:

• Amperage Rating: 900A
• Voltage Rating AC: 1250V (IEC), 1300V (UL)
• Voltage Rating DC: 1000V (UL/IEC)
• Interrupt Rating AC: 200 kA
• Interrupt Rating DC: 100 kA
• Fuse Size: 73
• I²t (Pre-arcing): 220 kA²s
• I²t (Total Clearing): 1800 kA²s
• Power Dissipation: 160 W
• Body Material: Ceramic
• Compliances:
  • IEC 60269-4
  • UL Recognized Component (File E60314)
  • CSA Component Acceptance (Class 1422-30 / File 53787)
  • RoHS Compliant
