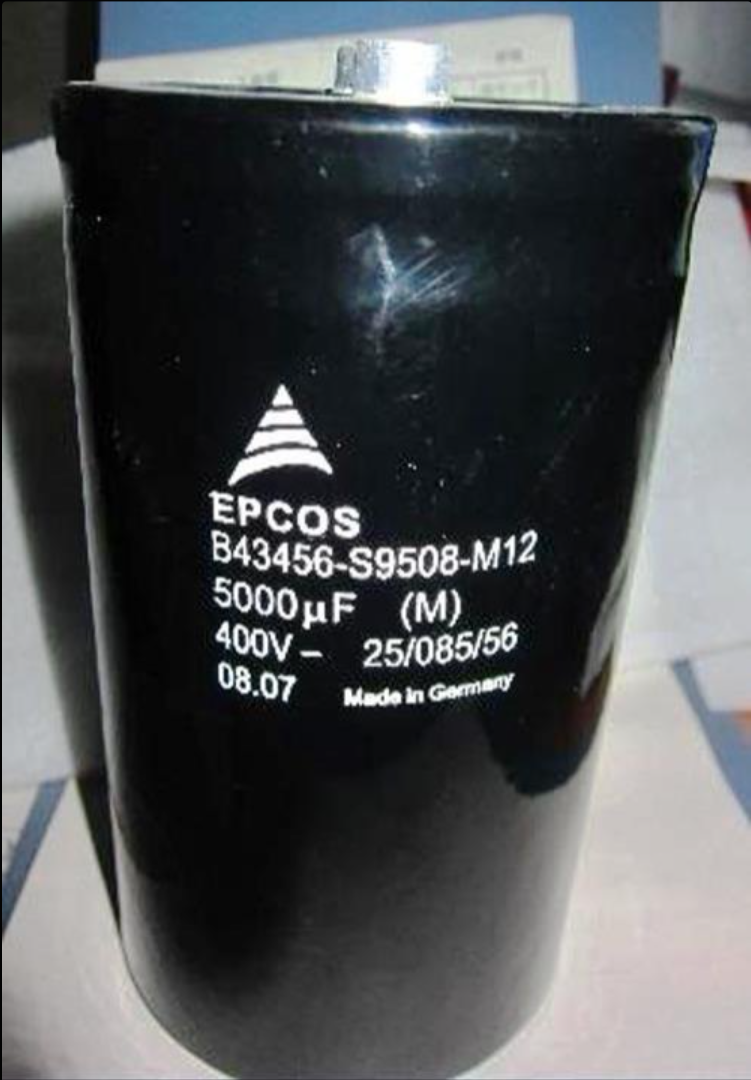

EPCOS B43456-S9508-M12 400V 5000uF Capacitor (2 Pieces)

Product Specification – EPCOS B43456-S9508-M12 Capacitor (Pack of 2)

Manufacturer
• EPCOS (a TDK Group company)

Model / Part Number
• B43456-S9508-M12

Quantity
• 2 pieces

Type
• Aluminum electrolytic, snap-in style

Electrical Ratings
• Capacitance: 5000 µF ±20%
• Rated voltage: 400 VDC
• Dissipation factor (tan δ @ 120 Hz, 20 °C): ≤ 0.20
• Equivalent series resistance (ESR @ 120 Hz, 20 °C): typical 0.017 Ω
• Ripple current (120 Hz, 85 °C): 36 A

Temperature Range
• –40 °C to +85 °C

Lifetime
• 5,000 h at 85 °C, 400 VDC

Standards & Compliance
• RoHS-compliant
• IEC 60384-4

Mechanical
• Case style: Snap-in can
• Dimensions (Ø × H): 63 mm × 105 mm (approx.)
• Terminal spacing: 27 mm
• Mounting: PCB snap-in pins

Applications
• Power supplies
• DC link and smoothing in inverters
• Industrial drives and UPS systems
