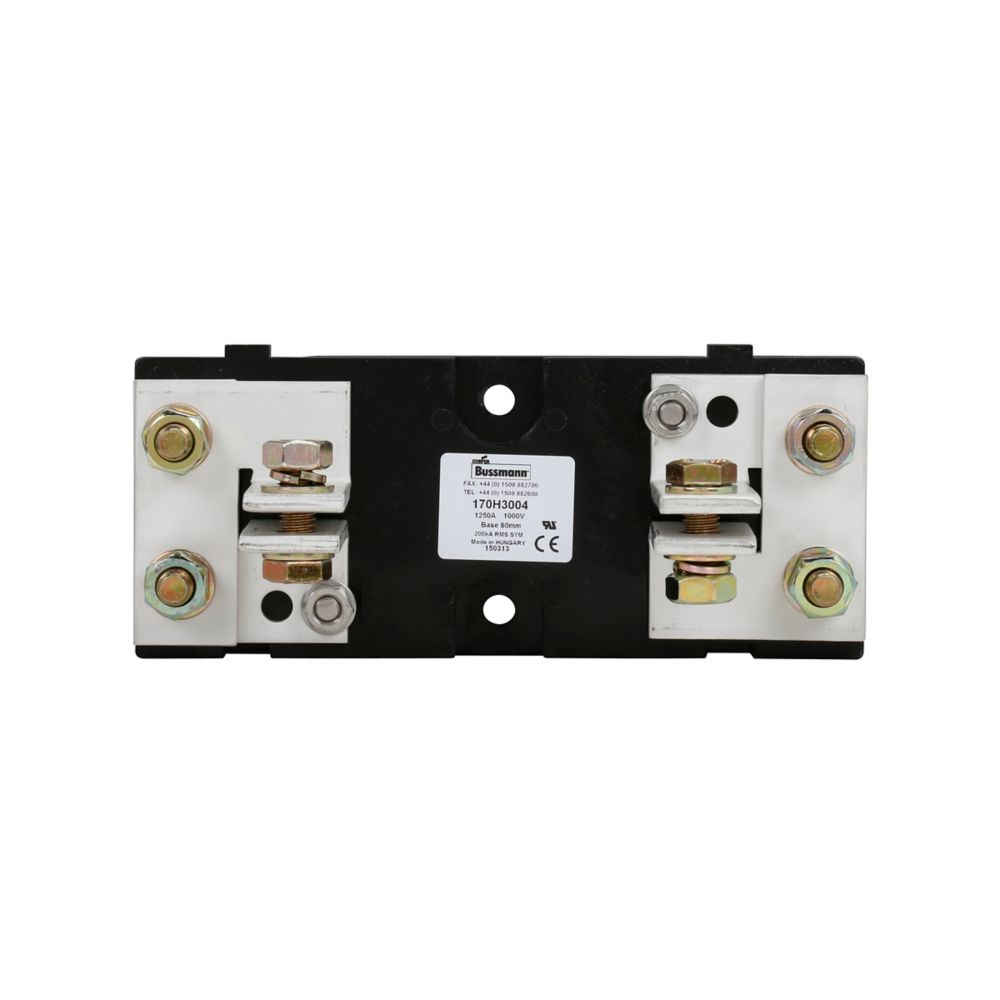

Bussmann 170H3004 BASE CA 80 1250A 1000V UR 43653 (6 Pieces)

Brand: Eaton
Product Series: Bussmann Series
Model Name: High-Speed Microswitch Fuse Base
Catalog Number: 170H3004
Model Code: BASE CA 80 1250A 1000V UR 43653
UPC: 051712804653
EAN: 5027590439138

Overview

The Eaton Bussmann Series 170H3004 is a high-speed microswitch fuse base engineered for use with semiconductor and high-speed fuses rated up to 690V (IEC) or 700V (UL). Designed for reliability and ease of integration, this single-pole fixed center fuse base supports robust electrical performance in industrial power systems.

Featuring a screw-on mounting method, M10 connector type, and halogen-free construction, the 170H3004 ensures safe and durable operation in demanding environments. It is designed for compatibility with size 80 mm center distance applications and includes an extra contact for enhanced control circuit integration.

Key Features

• High Current Capacity: Supports up to 1250 A at 1000 VAC/DC.
• Fixed Center Design: Ensures stable mounting for high-speed fuse integration.
• Extra Contact Included: Allows for auxiliary signaling or control functions.
• Halogen-Free Material: Enhances safety by reducing toxic emissions during fire exposure.
• Screw Connection Type: Provides secure and reliable wiring interface.
• RoHS Compliant & UL Certified: Meets global regulatory and safety standards.

Technical Specifications

Physical Dimensions
