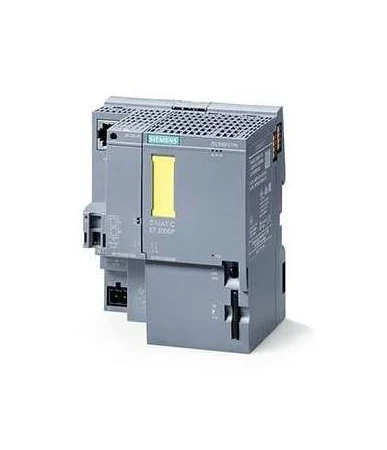

6AG1510-1SJ01-2AB0 Siemens SIPLUS ET 200SP CPU 1510SP F-1PN (2 Pieces)

6AG1510-1SJ01-2AB0 Siemens SIPLUS ET 200SP CPU 1510SP F-1PN (2 Pieces)

$4,456.00 USD
$4,456.00 USD
Sale Sold out
Shipping calculated at checkout.

Brand: Siemens
Product Name: SIPLUS S7-1500 CPU 1510SP-1 PN
Catalog Number: 6AG1510-1SJ01-2AB0
Series: SIPLUS S7-1500
Component Type: Central Processing Unit (CPU) for Distributed Periphery

Overview

The SIPLUS S7-1500 CPU 1510SP-1 PN (6AG1510-1SJ01-2AB0) is a high-performance, compact central processing unit specifically designed for use within the SIMATIC ET 200SP distributed I/O system. As part of the SIPLUS extreme series, this CPU is engineered to withstand harsh environmental conditions, making it ideal for applications where standard industrial components may not suffice. It offers robust performance with a focus on communication capabilities through its integrated PROFINET interface.

Key Features

  • SIPLUS Extreme Design: Enhanced robustness for extended temperature ranges, condensation, and increased mechanical stress (vibration/shock).
  • Integrated PROFINET Interface: One PROFINET IO controller interface for efficient communication with distributed I/O devices and other PROFINET participants.
  • High Performance: Fast processing speeds for demanding automation tasks.
  • Compact Design: Optimized for space-saving integration within the SIMATIC ET 200SP system.
  • Large Memory: Ample working and load memory for complex programs and data.
  • Web Server Functionality: Built-in web server for diagnostics, basic monitoring, and user-defined web pages.
  • Security Features: Enhanced security functions for protecting know-how, communication integrity, and system access.
  • Integrated System Diagnostics: Comprehensive diagnostic capabilities for quick troubleshooting.
  • Trace Function: Enables precise diagnostics and optimization of motion control applications and control loops.

Technical Specifications

Parameter Value
Program Memory 100 KB
Data Memory 750 KB
Integrated Interfaces 1 x PROFINET IO Controller (2-port switch)
Interface Type RJ45
PROFINET RT/IRT Support Yes
Max. Number of ET 200SP Modules 64 modules
Processing Time (Bit) 60 ns (typical)
Integrated Web Server Yes
Time Synchronization PROFINET, NTP (Network Time Protocol)
Firmware Update Via Memory Card
Required Memory Card SIMATIC Memory Card (not included)

SIPLUS Extreme Environmental Ratings

Parameter Value
Operating Temperature -40°C to +70°C (horizontal installation)
Relative Humidity 100% (condensation permitted)
Protective Coating Conformal coating on PCBs
Increased Mechanical Stress Suitable for applications with higher vibration and shock requirements

Compatibility

  • Designed for integration with the SIMATIC ET 200SP distributed I/O system.
  • Programming with TIA Portal engineering software.

Application Areas

The SIPLUS S7-1500 CPU 1510SP-1 PN is ideal for:

  • Manufacturing automation in harsh environments
  • Process automation in extreme conditions
  • Marine applications
  • Oil & Gas industry
  • Outdoor installations
  • Renewable energy systems (e.g., wind turbines)
  • Applications requiring robust and reliable control in challenging climates.
