Sinofuse RS308-HB-2G 25A aR 750VDC Fuses (10 Pieces)
Sinofuse RS308-HB-2G 25A aR 750VDC Fuses (10 Pieces)
The Sinofuse RS308-HB-2G 25A range of aR fuses provides reliable overload and short circuit protection for industrial controls and power conversion equipment operating on DC systems up to 750V.
Key Features:
-
16A to 180A current ratings
-
750VDC voltage rating
-

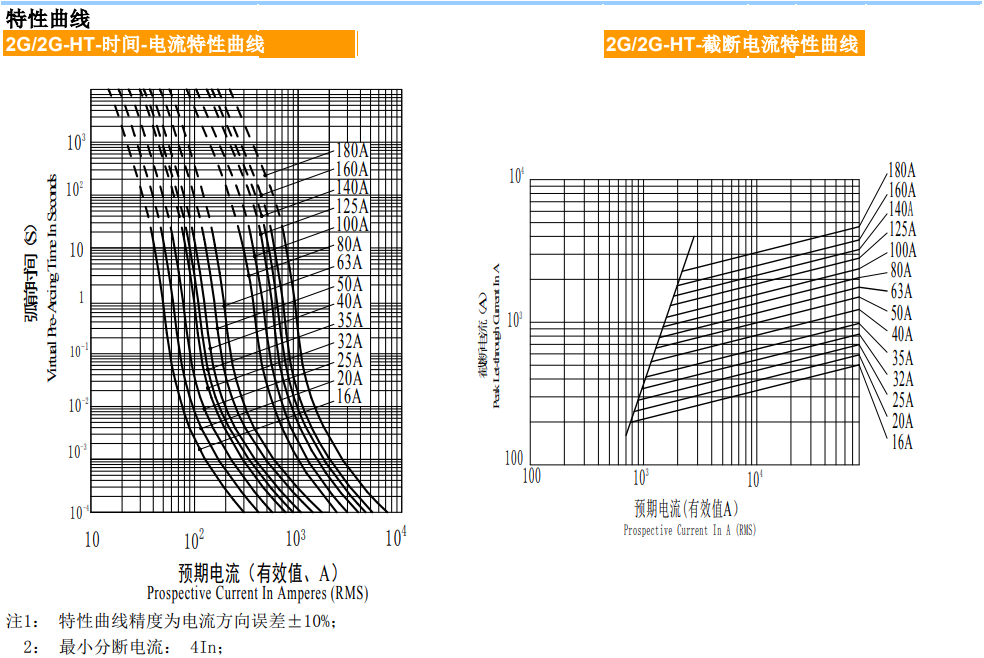

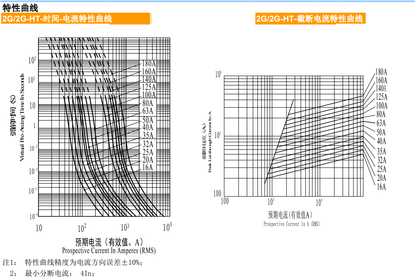

aR fast-acting fuse characteristics
-

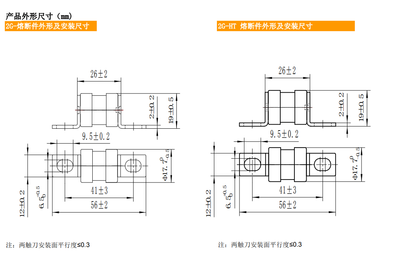

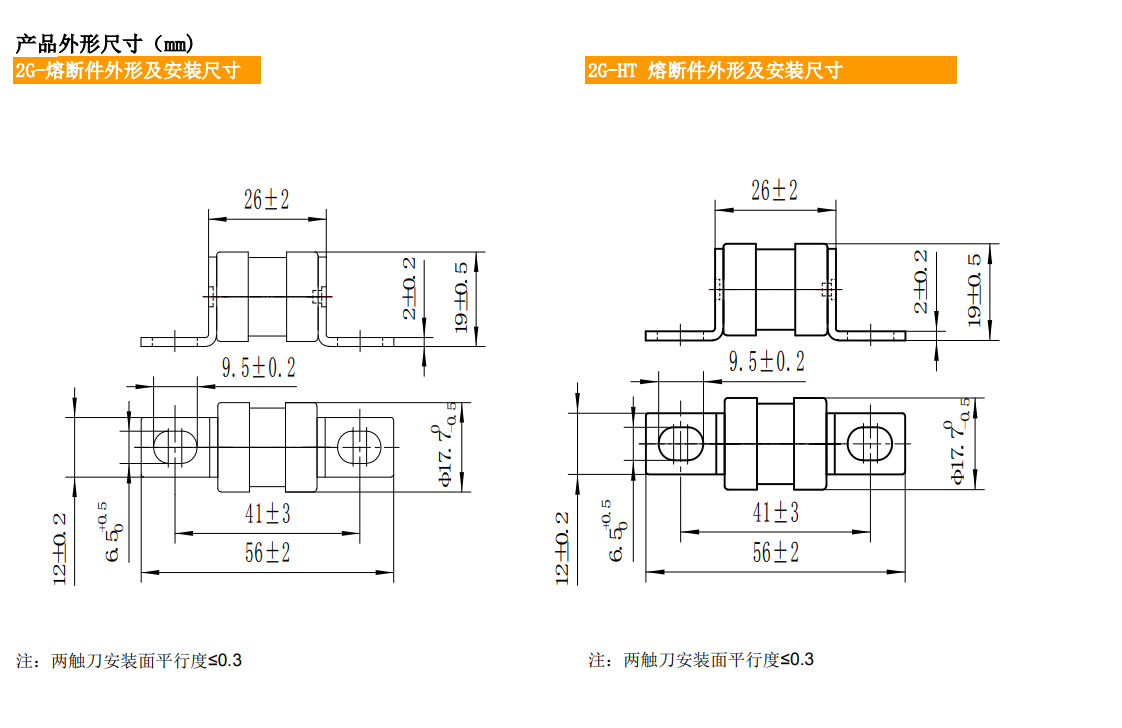

14x51mm compact body size
-
High interrupting rating

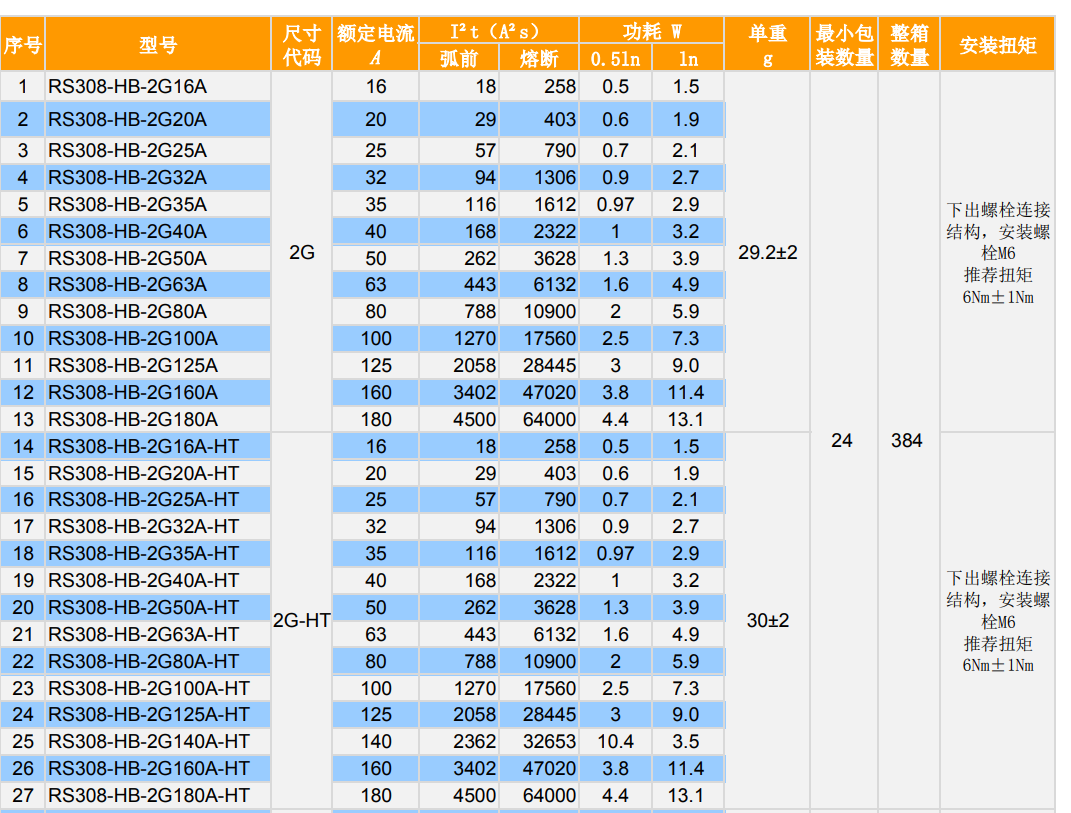

Models Available:
-
RS308-HB-2G 16A 750VDC
-
RS308-HB-2G 20A 750VDC
-
RS308-HB-2G 25A 750VDC
-
RS308-HB-2G 32A 750VDC
-
RS308-HB-2G 35A 750VDC
-
RS308-HB-2G 40A 750VDC
-
RS308-HB-2G 50A 750VDC
-
RS308-HB-2G 63A 750VDC
-
RS308-HB-2G 80A 750VDC
-
RS308-HB-2G 100A 750VDC
-
RS308-HB-2G 125A 750VDC
-
RS308-HB-2G 160A 750VDC
-
RS308-HB-2G 180A 750VDC
With precise current ratings and fast-acting aR curves, the RS308-HB-2G fuses isolate faults rapidly before damage occurs downstream. This prevents equipment destruction and process disruptions.
For reliable 750VDC protection, trust Sinofuse RS308-HB-2G fuses to match your load requirements while safely guarding industrial controls and power electronics.
