Sinofuse RS308-HB-2G 100A aR 750VDC Fuses (10 Pieces)

Sinofuse RS308-HB-2G 100A aR 750VDC Fuses (10 Pieces)

Regular price $96.00 USD
Regular price Sale price $96.00 USD
Sale Sold out
Shipping calculated at checkout.

The Sinofuse RS308-HB-2G range of aR fuses provides reliable overload and short circuit protection for industrial controls and power conversion equipment operating on DC systems up to 750V.

Key Features:

  • 16A to 180A current ratings

  • 750VDC voltage rating

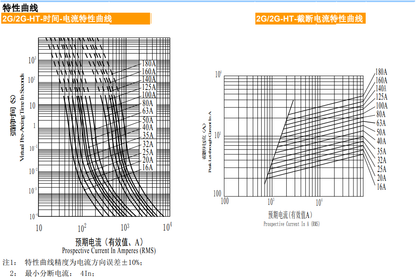

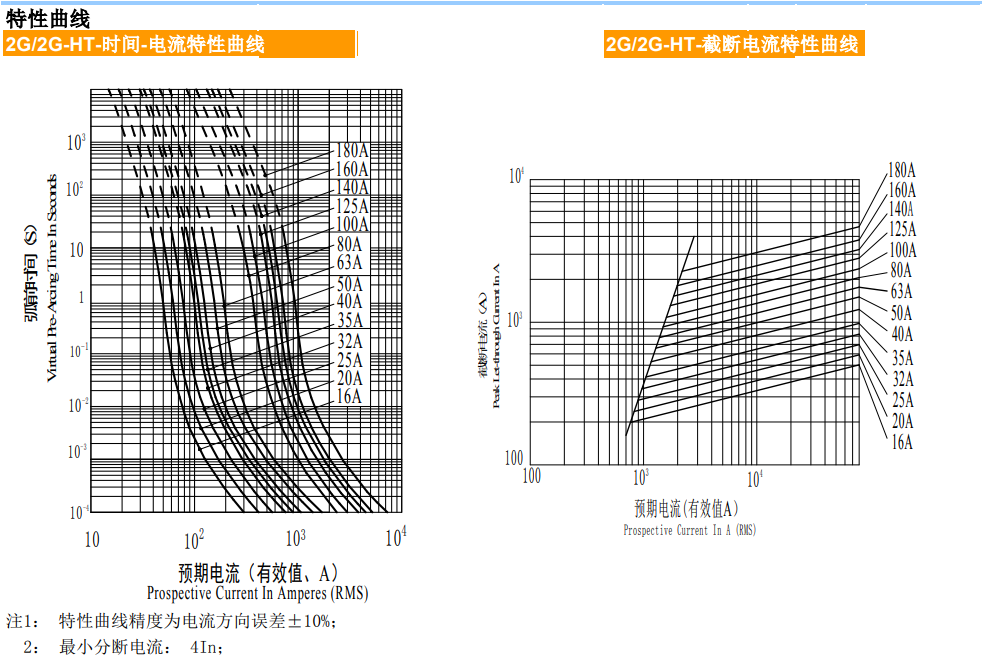

  • aR fast-acting fuse characteristics

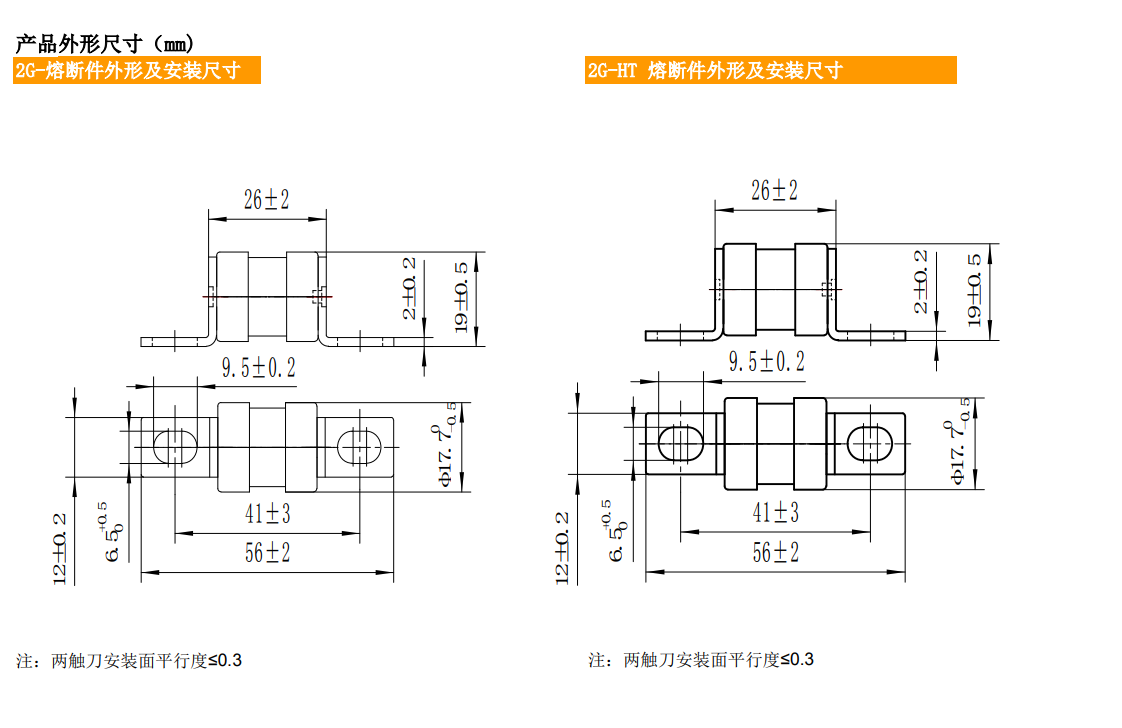

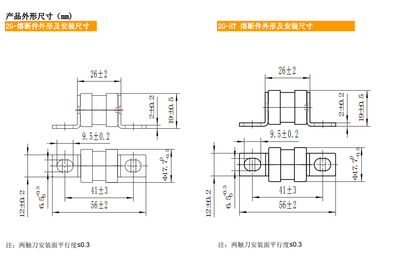

  • 14x51mm compact body size

  • High interrupting rating

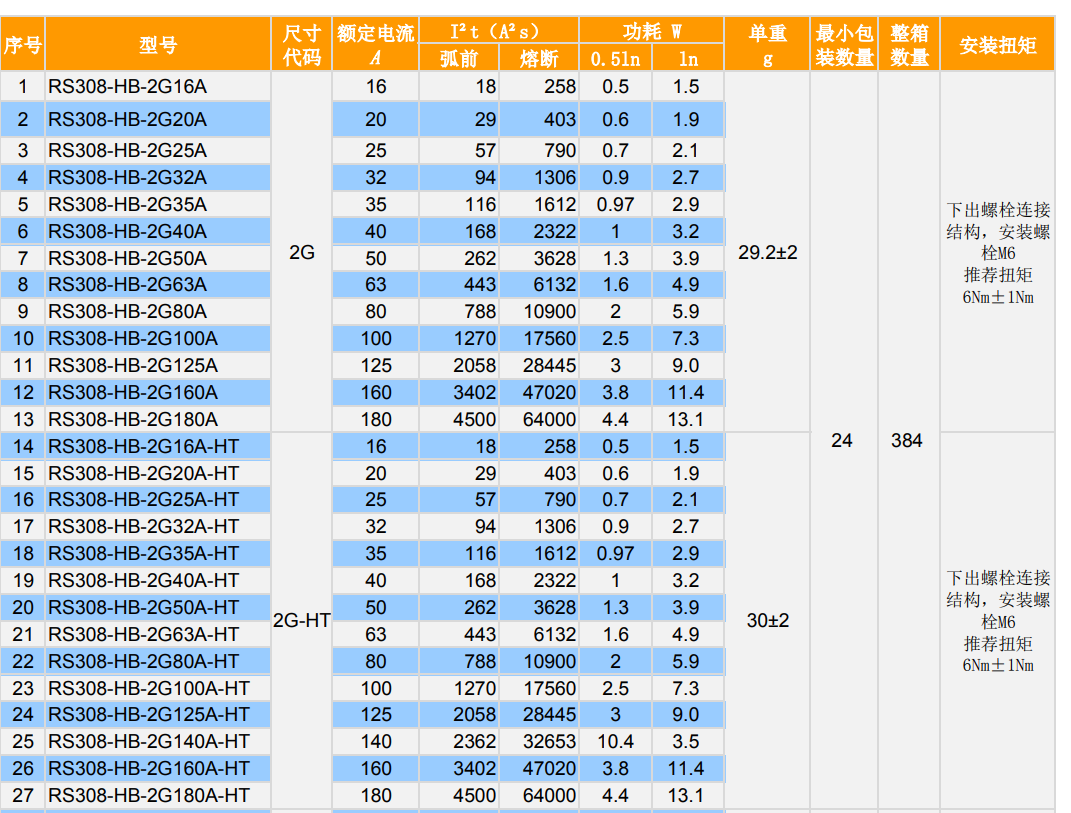

Models Available:

  • RS308-HB-2G 16A 750VDC

  • RS308-HB-2G 20A 750VDC

  • RS308-HB-2G 25A 750VDC

  • RS308-HB-2G 32A 750VDC

  • RS308-HB-2G 35A 750VDC

  • RS308-HB-2G 40A 750VDC

  • RS308-HB-2G 50A 750VDC

  • RS308-HB-2G 63A 750VDC

  • RS308-HB-2G 80A 750VDC

  • RS308-HB-2G 100A 750VDC

  • RS308-HB-2G 125A 750VDC

  • RS308-HB-2G 160A 750VDC

  • RS308-HB-2G 180A 750VDC

With precise current ratings and fast-acting aR curves, the RS308-HB-2G fuses isolate faults rapidly before damage occurs downstream. This prevents equipment destruction and process disruptions.

For reliable 750VDC protection, trust Sinofuse RS308-HB-2G fuses to match your load requirements while safely guarding industrial controls and power electronics.
