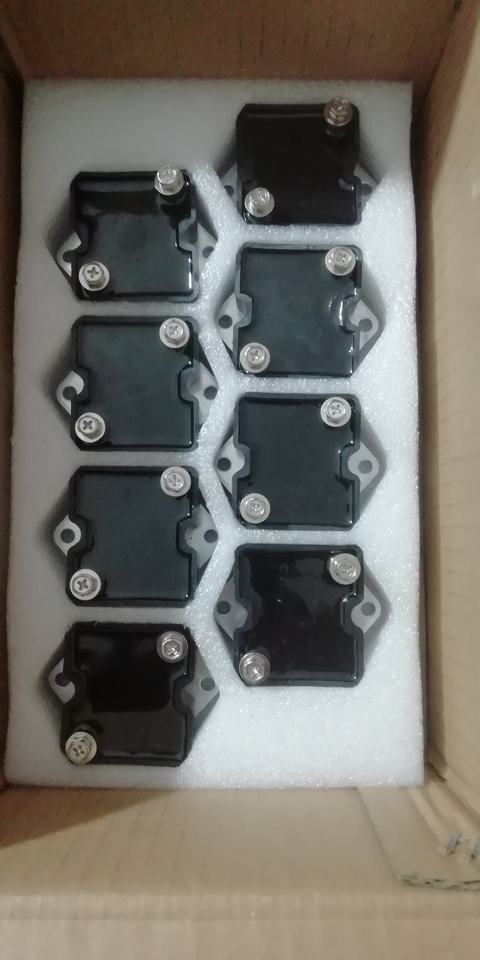

Sensitive Control Module: SXV40K550C MMY40K550 / LS40K550QPK2 （3pieces）

VARISTORS MODULE for Genset Rectifiers

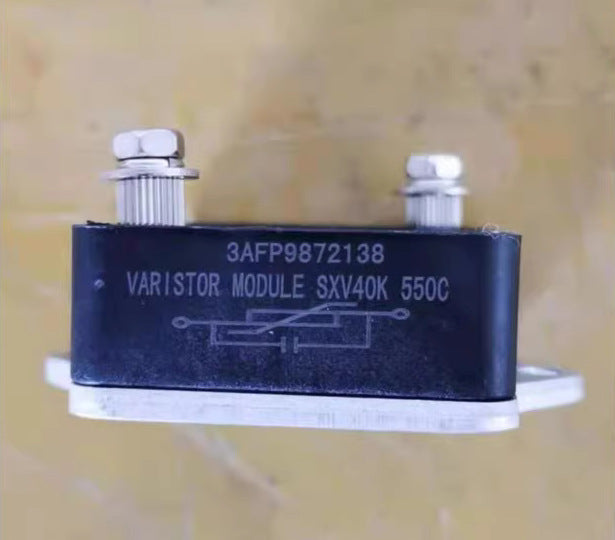

SXV40K550C VARISTORS MODULE for Genset Rectifier

Model

VARISTORS MODULE SXV40K550C

Characteristics Parameter

Voltage(V1mA) Varistor Voltage :910V (±10%)

Leakage current :<20μA

Limiting voltage :1500V

Max peak current capacity: 40KA 8/20μs

Apply inrush current of 8/20μs waveform twice in the same direction at an interval of 5 minutes.

Current value with voltage change rate <10%.

Max continous operating voltage:

AC :550V

DC :745V

Built-in capacitance Capacitance :100nf±10% >1000VDC
