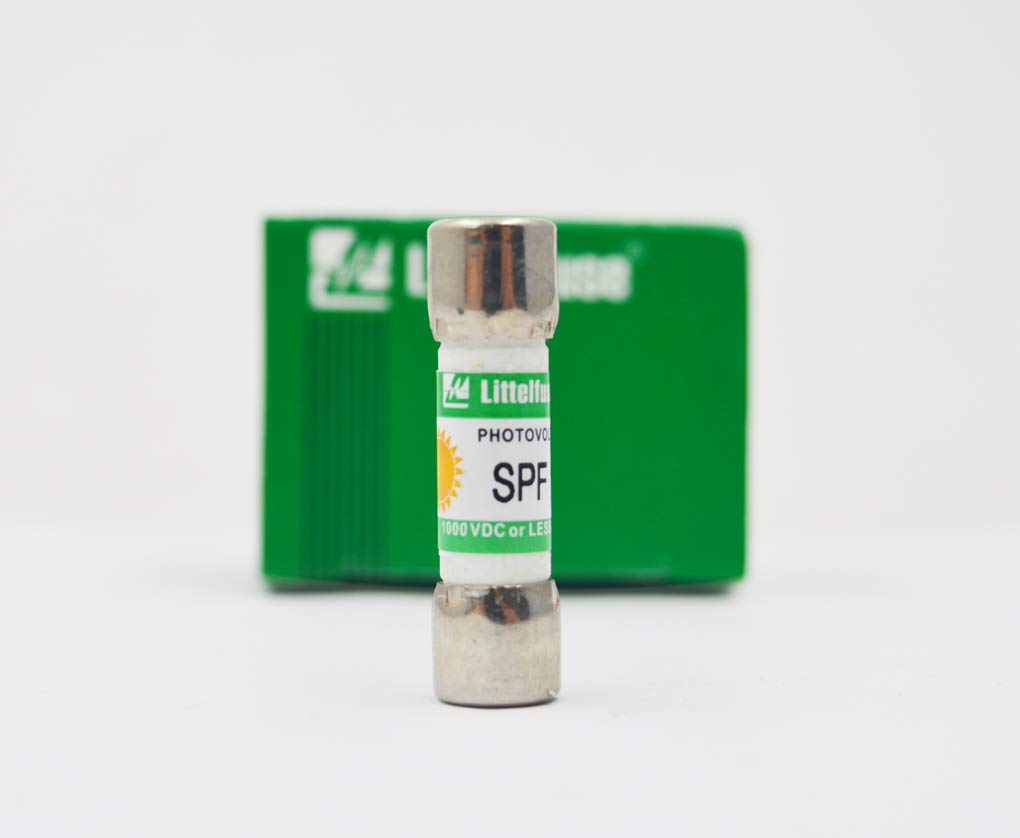

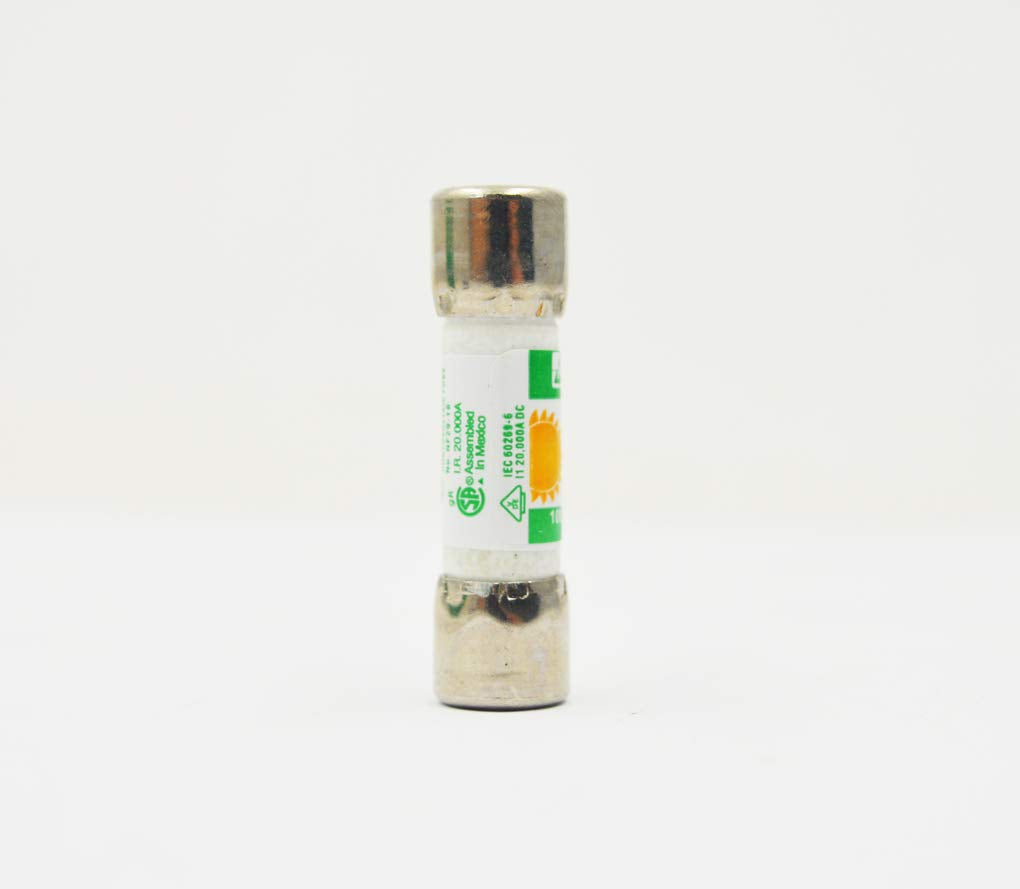

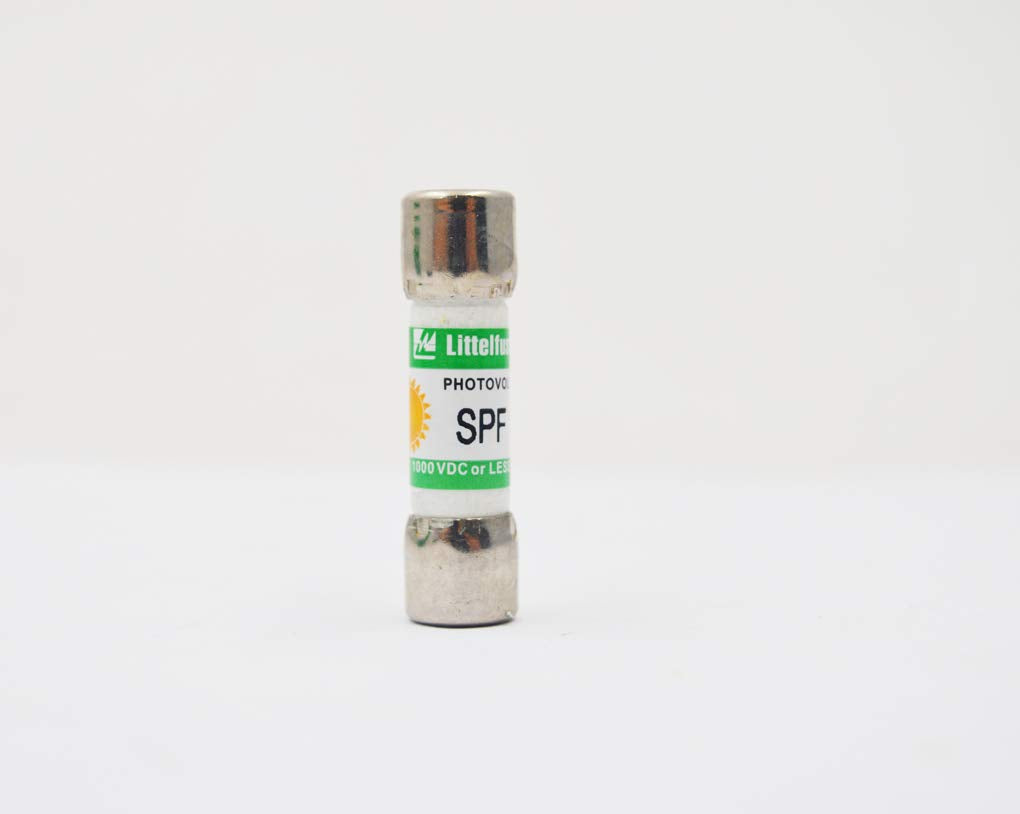

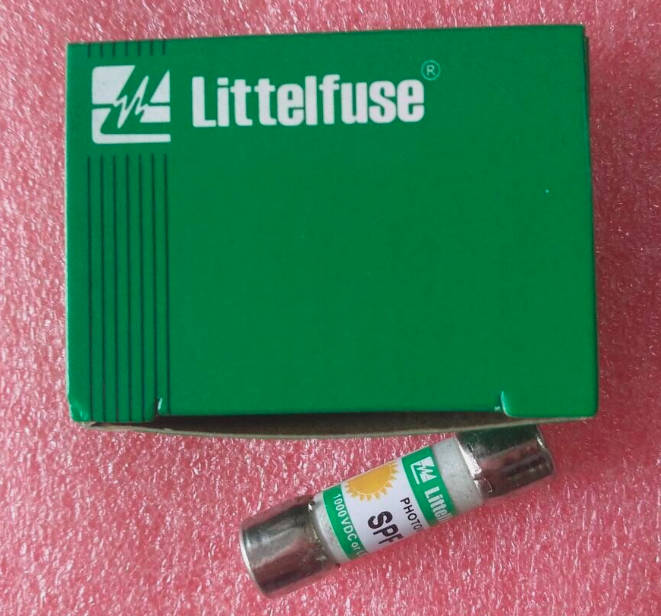

LittelFuse SPF004 4A 1000VDC Fuses
LittelFuse SPF004 4A 1000VDC Fuses
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Unit price
/
per

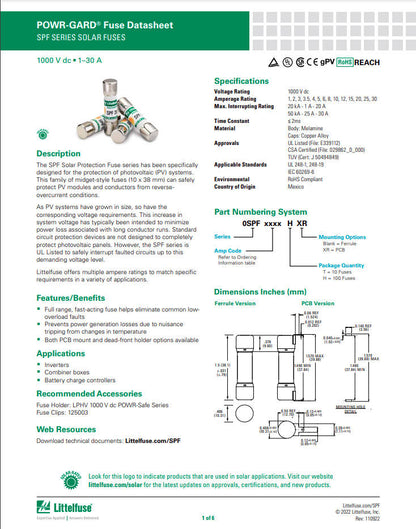

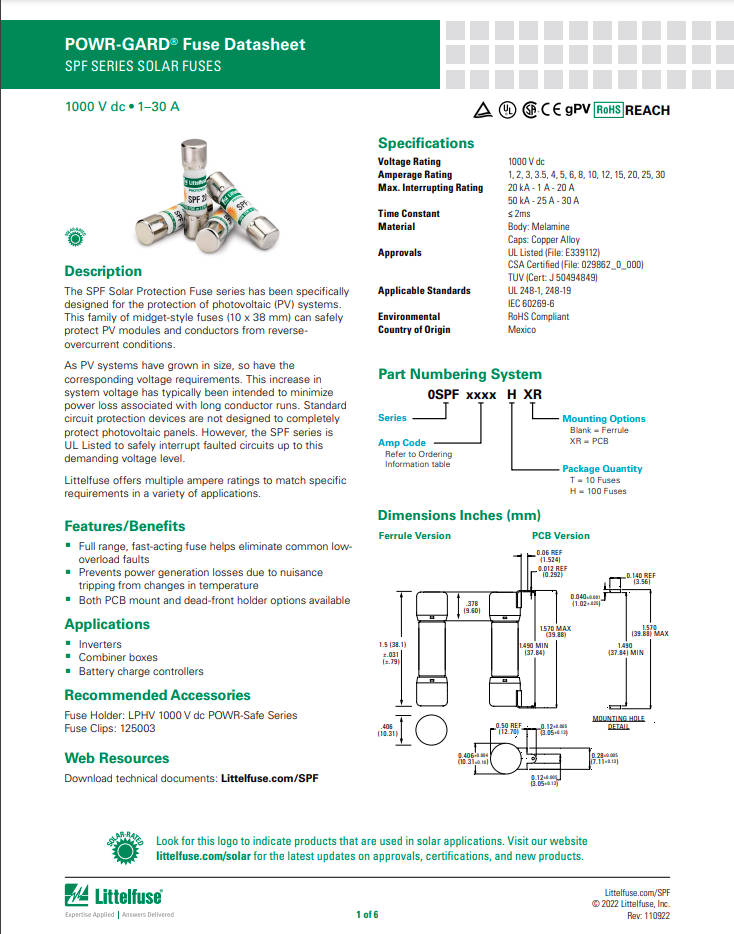

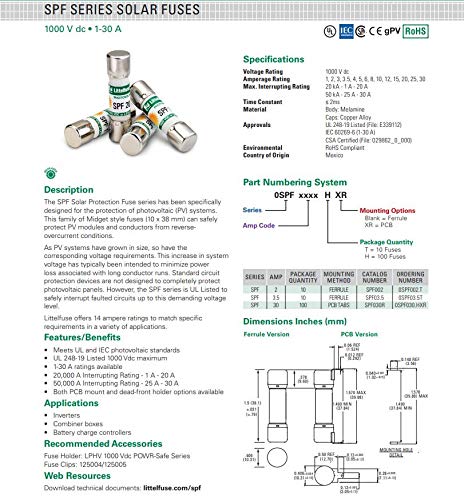

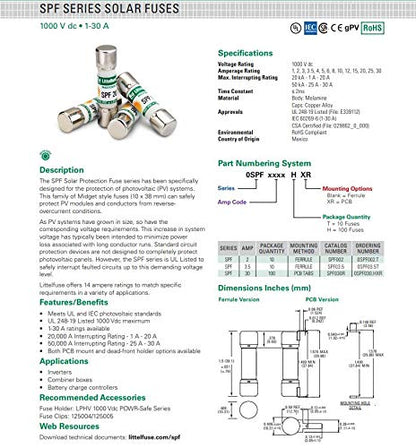

Description The SPF Solar Protection Fuse series has been specifically designed for the protection of photovoltaic (PV) systems. This family of midget-style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverseovercurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the SPF series is UL Listed to safely interrupt faulted circuits up to this demanding voltage level. Littelfuse offers multiple ampere ratings to match specific requirements in a variety of applications. Features/Benefits Full range, fast-acting fuse helps eliminate common lowoverload faults Prevents power generation losses due to nuisance tripping from changes in temperature Both PCB mount and dead-front holder options available Applications Inverters Combiner boxes Battery charge controllers Recommended Accessories Fuse Holder: LPHV 1000 V dc POWR-Safe Series Fuse Clips: 125003
